NavSource Online: Amphibious Photo Archive

USS LSM-496

Awards, Citations and Campaign Ribbons

Precedence of awards is from left to right
American Campaign Medal - Asiatic-Pacific Campaign Medal - World War II Victory Medal
LSM-1 Class Landing Ship Medium:
  • Laid down, 10 March 1945, at Brown Shipbuilding Co., Houston, TX.
  • Launched, 31 March 1945
  • Commissioned USS LSM-496, 10 May 1945, LT. Willis T. Stewart USNR in command
  • During World War II USS LSM-496 was assigned to the Asiatic-Pacific Theater:
    LSM Flotilla Fifteen;
     LSM Group Forty-Four;
     LSM Division Eighty-Eight;
  • Decommissioned, 20 June 1946, at Green Cove Springs FL.
  • Laid up in the Atlantic Reserve Fleet, Florida Group, Green Cove Springs
  • Struck from the Naval Register, date unknown
  • Sold in January 1959, to Missouri Valley Dredging Co., Birdsboro, PA.
  • Final Disposition, fate unknown
    Specifications:
    Displacement 520 t.(light), 743 t. (landing) 1,095 t.(fully loaded)
    Length 203' 6" (ovl)
    Beam 34' 6"
    Draft
    light, 3' 6" forward, 7' 8" aft
    fully loaded, 6' 4" forward, 8' 3" aft
    Speed 13.2 kts. (max.), (928 tons displacement)
    Complement
    5 officers
    54 enlisted
    Armament
    one twin bow mounted 40mm gun
    four single 20mm gun mounts
    Vehicle/Boat Capacity 5 medium or 3 heavy tanks, or 6 LVT's, or 9 DUKW's
    Fuel Capacity
    Diesel 1,225 Bbls
    Troop Accommodations
    2 officers
    46 enlisted
    Armor 10-lb. STS splinter shield to gun mounts, pilot house and conning station
    Endurance 4,900 miles @ 12kts.(928 tons displacement)
    Propulsion
    two General Motors (model GM 16-278A, reversible with hydraulic clutch) Diesel engines, direct drive with 1,440 BHP each @ 720rpm
    Ship's Service Generators
     two Diesel-drive 100Kw 450V A.C.
     one Diesel-drive 20Kw 120V D.C.
    twin propellers, 2,800shp
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By

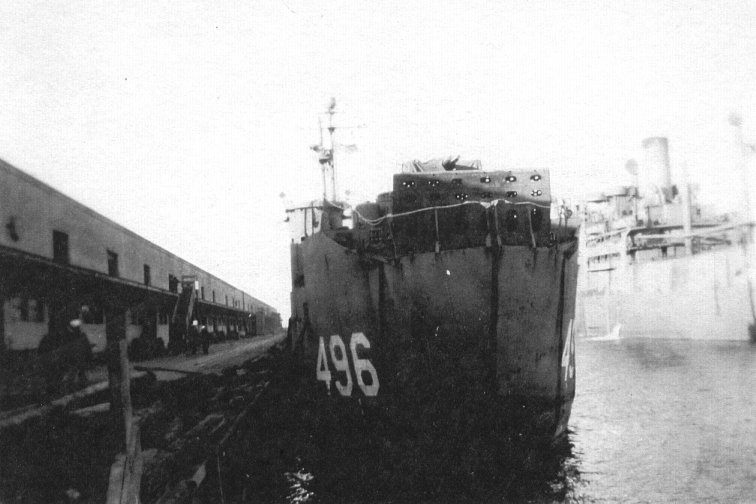

    LSM-496 61k USS LSM-496 moored at Galveston, TX., date unknown. Dick Miller, YN3/c USS LSM 496

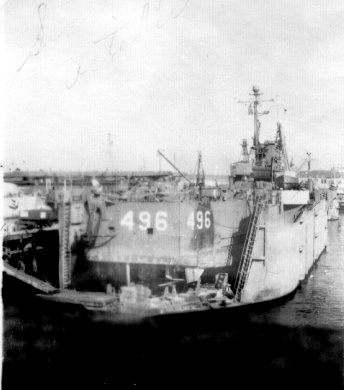

    LSM-496 22k USS LSM-496 in dry dock, date and location unknown. Dick Miller, YN3/c USS LSM 496

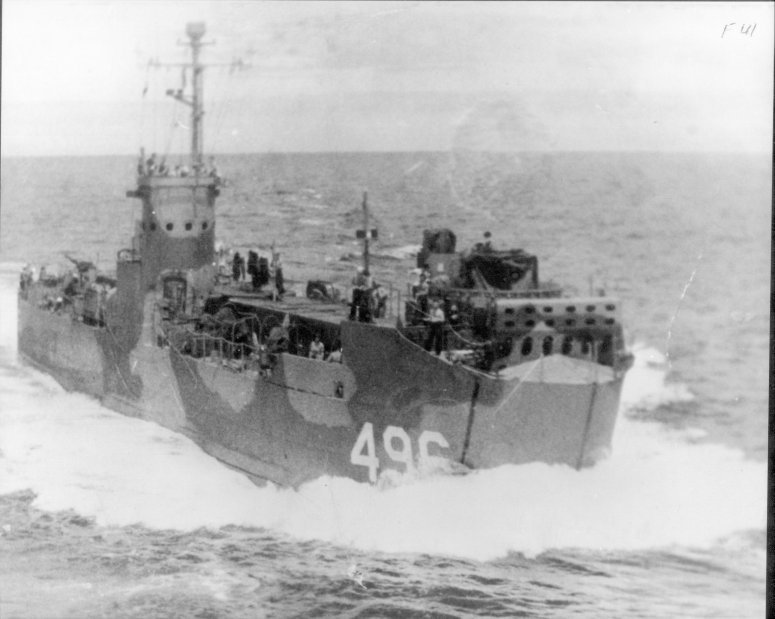

    LSM-496 63k USS LSM-496 under way, enroute from Gulfport, MS. to Guam with pontoons, date unknown. Dick Miller, YN3/c USS LSM 496 and Morris Beck to the USS LSM / LSMR Association
    The history extract for USS LSM-496 is from LSM-LSMR Amphibious Forces, Vol. II. Paducah, Kentucky: Turner Publishing Company, © 1997. (ISBN 1-56311-389-9).
    Commanding Officers
    01LT. Stewart, Willis T., USNR10 May 1945 - ?
    Crew Contact And Reunion Information
    U.S. Navy Memorial Foundation - Navy Log
    USS LSM-LSMR Association
