NavSource Online: Amphibious Photo Archive

USS LSM-456

Awards, Citations and Campaign Ribbons

Precedence of awards is from top to bottom, left to right
Top Row - China Service Medal (extended) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)

USS LSM-456 was transferred to the Republic of China and redesignated LSM-345

LSM-1 Class Landing Ship Medium:

Laid down, 15 November 1944, at Western Pipe and Steel Co., San Pedro, CA.

Launched, 28 December 1944

Commissioned USS LSM-456, 13 March 1945, LT. George M. Brown USN in command

During World War II USS LSM-456 was assigned to the Asiatic-Pacific Theater:
LSM Flotilla Fourteen, LCDR. W. R. McCaleb;
LSM Group Forty-One;
LSM Division Eighty-Two

Following World War II USS LSM-456 was assigned to Occupation and China service in the Far East for the following period:

Navy Occupation Service Medal	China Service Medal (extended)
11 September 1945 to 8 February 1947	11 September 1945 to 8 February 1947

Decommissioned, 8 February 1947, and transferred the same day to the Republic of China

Struck from the Naval Register, date unknown

Escaped to Taiwan in October 1949 with the fall of the Republic of China and redesignated LSM-345

Final Disposition, scrapped by Taiwanese Navy in 1970

Specifications:
Displacement 520 t.(light), 743 t. (landing) 1,095 t.(fully loaded)
Length 203' 6" (ovl)
Beam 34' 6"
Draft

light, 3' 6" forward, 7' 8" aft

fully loaded, 6' 4" forward, 8' 3" aft

Speed 13.2 kts. (max.), (928 tons displacement)

Complement

5 officers

54 enlisted

Armament

one twin bow mounted 40mm gun

four single 20mm gun mounts

Vehicle/Boat Capacity 5 medium or 3 heavy tanks, or 6 LVT's, or 9 DUKW's

Fuel Capacity

Diesel 1,225 Bbls

Troop Accommodations

2 officers

46 enlisted

Armor 10-lb. STS splinter shield to gun mounts, pilot house and conning station

Endurance 4,900 miles @ 12kts.(928 tons displacement)

Propulsion

two General Motors (model GM 16-278A, reversible with hydraulic clutch) Diesel engines, direct drive with 1,440 BHP each @ 720rpm
Ship's Service Generators
two Diesel-drive 100Kw 450V A.C.
one Diesel-drive 20Kw 120V D.C.

twin propellers, 2,800shp

Click On Image For Full Size Image	Size	Image Description	Contributed By

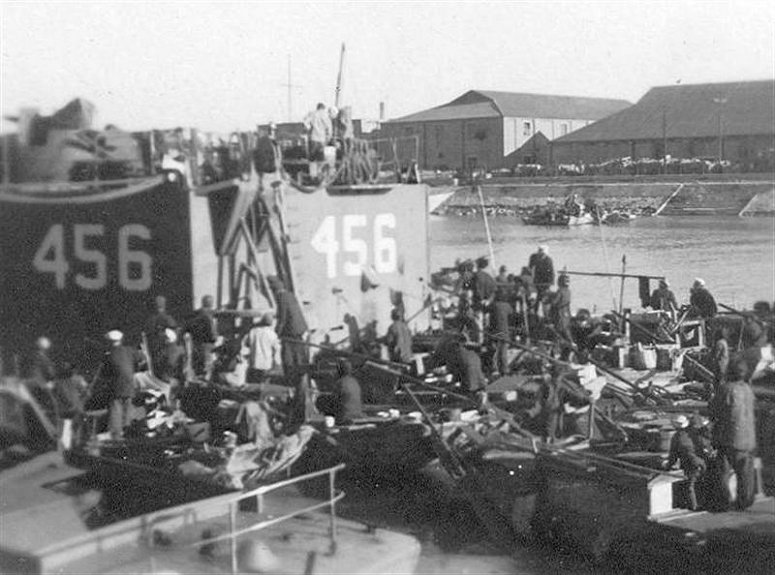

1015075604	25k	USS LCI(M)-756 and USS LCI(M)-757 moored alongside USS LSM-430 and USS LSM-456 date and location unknown. Photo from USS LCI National Association's newsletter, the "Elsie Item", June 2019.	Ardie Hunt

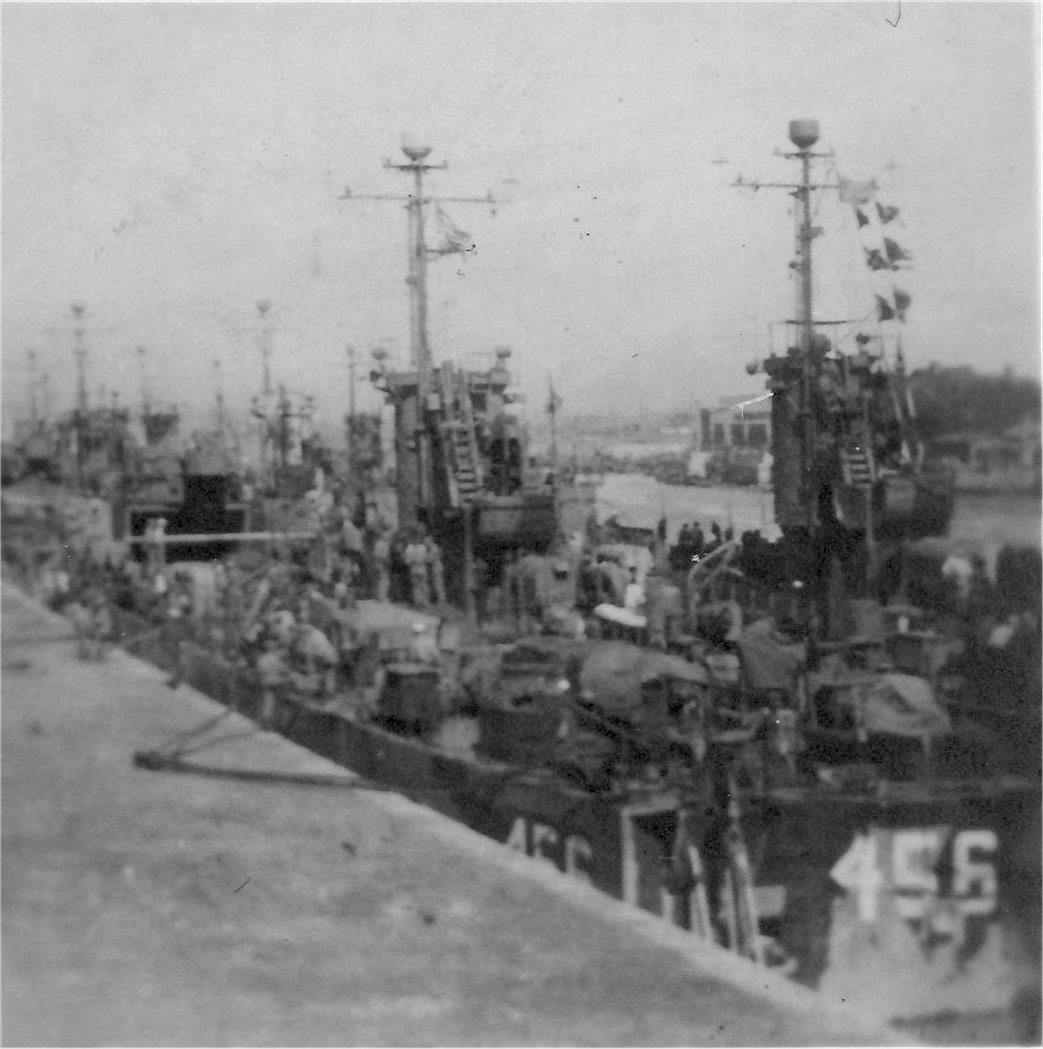

	147k	USS LSM-456 moored pierside inboard of USS LSM-279 at Tientsin China, September 1945.	Steve Franklin

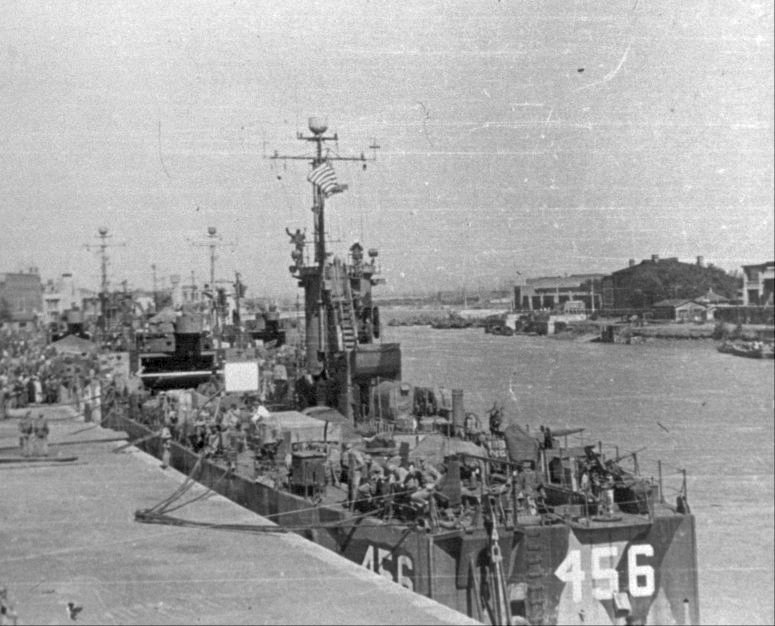

	138k	USS LSM-456 moored pierside at Tientsin China, September 1945.	Steve Franklin and USS LSM / LSMR Association
	91k		Steve Franklin and USS LSM / LSMR Association
	90k	USS LSM-456 moored pierside at Tientsin, China, date unknown. Note that she has been repainted since arriving in China. (See preceding photos)	Russ Padden

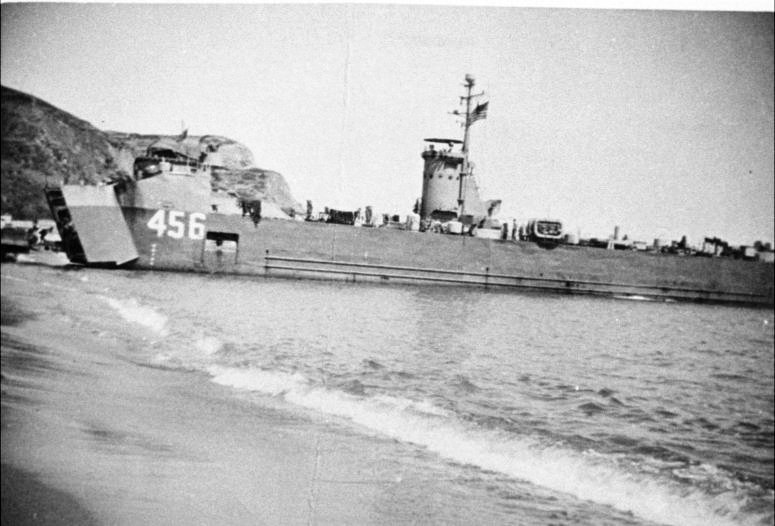

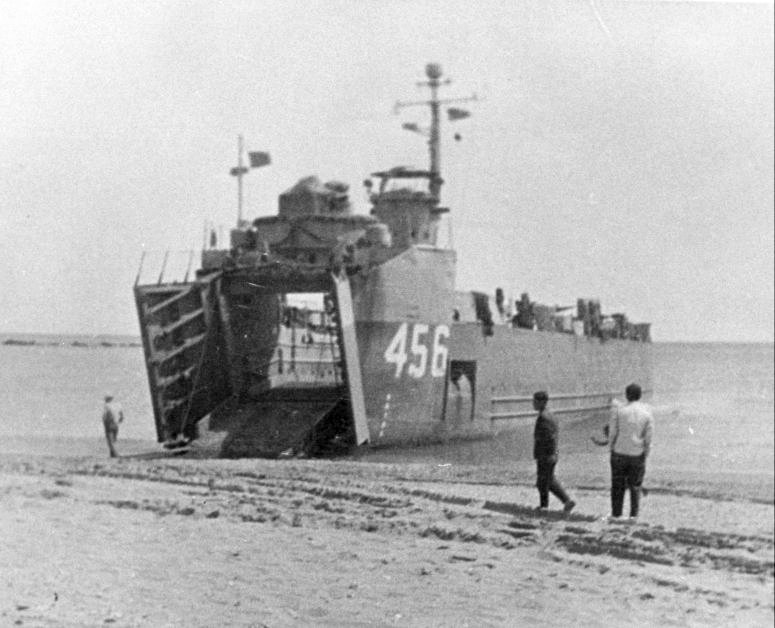

	73k	USS LSM-456 beached at Samchock, Korea, date unknown	Robert MacNeal to the USS LSM / LSMR Association
	82k	USS LSM-456 beached at Samchock, Korea, date unknown	Robert MacNeal to the USS LSM / LSMR Association

Commanding Officers
01	LT. Brown, George Melton, USN	13 March 1945 - 30 May 1946
02	LTjg. Rowlett Jr., Bascom. J., USNR	30 May /1946 - August 1946
03	LT. Daniels, Luther Ross, USN	August 1946 - 8 February 1947


Courtesy Wolfgang Hechler

Crew Contact And Reunion Information
U.S. Navy Memorial Foundation - Navy Log
