NavSource Online: Amphibious Photo Archive

USS LSM-423

Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right Top Row - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)

USS LSM-423 was sold to the Republic of China
LSM-1 Class Landing Ship Medium:
  • Laid down, 28 October 1944, at Dravo Corporation, Wilmington, DE.
  • Launched, 12 December 1944
  • Commissioned USS LSM-423, 11 January 1945, LT. Horace E. Phillips USNR in command
  • During World War II USS LSM-423 was assigned to the Asiatic-Pacific Theater:
    LSM Flotilla Twelve, LCDR. A. F. Dineen USN (22);
     LSM Group Thirty-Six, LT. V. L. Homer USN;
     LSM Division Seventy-One
  • Following World War II USS LSM-423 was assigned to Occupation service in the Far East for the following periods:

    Navy Occupation Service Medal
    20 September to 5 October 1945
    20 October 1945 to 4 August 1946

  • Decommissioned, 10 August 1946, at NOB Subic Bay , Philippines
  • Struck from the Naval Register, date unknown
  • Sold, 13 February 1948, to the Republic of China
  • Final Disposition, fate unknown
    Specifications:
    Displacement 520 t.(light), 743 t. (landing) 1,095 t.(fully loaded)
    Length 203' 6" (ovl)
    Beam 34' 6"
    Draft
    light, 3' 6" forward, 7' 8" aft
    fully loaded, 6' 4" forward, 8' 3" aft
    Speed 13.2 kts. (max.), (928 tons displacement)
    Complement
    5 officers
    54 enlisted
    Armament
    one twin bow mounted 40mm gun
    four single 20mm gun mounts
    Vehicle/Boat Capacity 5 medium or 3 heavy tanks, or 6 LVT's, or 9 DUKW's
    Fuel Capacity
    Diesel 1,225 Bbls
    Troop Accommodations
    2 officers
    46 enlisted
    Armor 10-lb. STS splinter shield to gun mounts, pilot house and conning station
    Endurance 4,900 miles @ 12kts.(928 tons displacement)
    Propulsion
    two Fairbanks Morse (model 38D81/8X10, reversible with hydraulic clutch) Diesel engines, direct drive with 1,440 BHP each @ 720rpm
    Ship's Service Generators
     two Diesel-drive 100Kw 450V A.C.
     one Diesel-drive 20Kw 120V D.C.
    twin propellers, 2,800shp
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By
    LSM-423 52k LSM-423 launch at Dravo Corporation, Wilmington, DE., 12 December 1944 USS LSM / LSMR Association

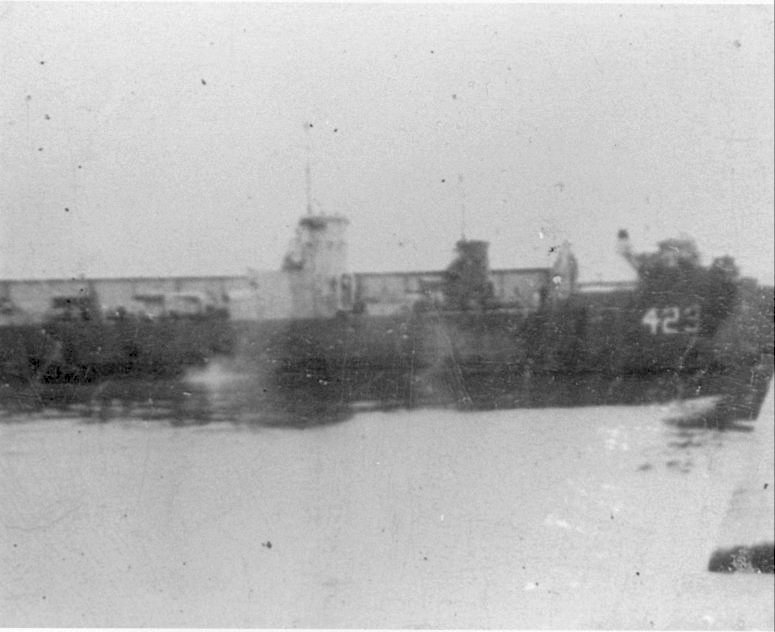

    LSM-423 92k USS LSM-423 moored pierside, date and location unknown. USS LSM / LSMR Association
    LSM-423 91k USS LSM-423 moored pierside, date and location unknown. USS LSM / LSMR Association
    LSM-423 61k USS LSM-423 moored pierside in Japan, 1946. USS LSM / LSMR Association
    Commanding Officers
    01LT. Phillips, Horace Edward, USNR11 January 1945 - 4 November 1945
    02LT. Marks, Myron B., USNR4 November 1945 - March 1946
    03ENS. Jensen, George H., USNRMarch 1946 - June 1946
    04ENS. Wallace, James William, USNJune 1946 - 10 August 1946
    Courtesy Wolfgang Hechler
    Crew Contact And Reunion Information
    U.S. Navy Memorial Foundation - Navy Log
