NavSource Online: Amphibious Photo Archive

USS Lloyd (APD-63)
ex
 USS Lloyd (DE-209) (1944)

International Radio Call Sign:
November - Foxtrot - Juliet - India
 NFJI
Awards, Citations and Campaign Ribbons




Precedence of awards is from top to bottom, left to right
Top Row - Combat Action Ribbon (retroactive, 12 to 15 January 1945)
Second Row - China Service Medal (extnede) - American Campaign Medal - Europe-Africa-Middle East Campaign Medal
Third Row - Asiatic-Pacific Campaign Medal (5) - World War II Victory Medal - Navy Occupation Service Medal (with Asia or Europe clasp)
Fourth Row - National Defense Service Medal - Philippines Presidential Unit Citation - Philippine Liberation Medal (2)
Buckley Class Destroyer Escort / Charles Lawrence Class High-speed Transport:
  • Laid down, 26 July 1943, as Lloyd (DE-209), a Buckley Class Destroyer Escort, at Charleston Navy Yard, Charleston S.C.
  • Launched, 23 November 1943
  • Commissioned USS Lloyd (DE-209), 11 February 1944, LCDR. Peter N. Gammelgard USNR in command
  • Converted to a High-speed Transport at Philadelphia Navy Yard, Philadelphia PA.
  • Redesignated (APD-63), 5 July 1944
  • During World War II USS Lloyd (DE-209) was first assigned to convoy duty in the American and Europe-Africa-Middle East Theaters and later as High-speed Transport APD-63 to the Asiatic-Pacific Theater and participated in the following campaigns:

    Asiatic-Pacific Campaigns
    Campaign and Dates Campaign and Dates
    Leyte operation
    Leyte landings, 19 to 29 November 1944
    Ormoc Bay landings, 7 to 8 December 1944     		Consolidation and capture of Southern Philippines
    Palawan Islands landing, 28 February 1945
    Visayan Island landings, 26 to 27 March 1945
    Luzon operation
    Mindoro landings, 12 to 18 December 1944     		Borneo operation
    Brunei Bay operation, 10 June 1945
    Balikpapan operation, 26 June to 4 July 1945
    Manila Bay-Bicol operation
    Zambales-Subic Bay landing, 29 to 31 January 1945

  • While assigned to the Asiatic-Pacific Theater USS Lloyd (APD-63) was under the command of:
    TransRon Twenty-Four, COMO. E. L. Short, USN;
     TransDiv One Hundred Three, CDR. W. S. Parsons USN
  • Following World War II USS Lloyd was assigned to Occupation and China service in the Far East for the following periods:

    Navy Occupation Service Medal
    China Service Medal (extended)
    (Asia) 2 to 13 September 1945
    (Asia) 24 September to 8 October 1945
    (Asia) 1 to 27 November 19451 to 27 November 1945
    (Europe) 3 May to 8 October 1952

  • Decommissioned, 1 July 1946, at Green Cove Springs FL.
  • Laid up in the Atlantic Reserve Fleet, Florida Group, Green Cove Springs
  • Recommissioned, 3 January 1951, LCDR. A. A. Sullivan in command
  • Following recommissioning USS Lloyd was assigned to Occupation service in Europe from 3 May to 8 October 1952
  • Decommissioned, 18 February 1958 at Charleston S.C.
  • Laid up in the Atlantic Reserve Fleet
  • Struck from the Naval Register. 1 June 1966
  • USS Lloyd (APD-63) earned five battle stars for World War II service
  • Final Disposition, sold for scrapping, 5 March 1968, to Southern Scrap Material Co., New Orleans, LA., for $30,000
    APD Specifications:
    Displacement 1,400 t.(lt), 2,130 t.(fl)
    Length 306' ovl.
    Beam 37'
    Draft 12' 7" (limiting)
    Speed 23.6 kts. (trial)
    Range 6,000 nautical miles at 12 kts.
    Complement
    Officers 12
    Enlisted 192
    Troop Accommodations
    Officers 12
    Enlisted 150
    Largest Boom Capacity 10 t.
    Boats 4 LCVP landing craft
    Troop Accoutrements
    six 1/4 ton trucks
    two 1 ton trucks
    four ammunition carts
    four pack howitzers
    Storage
    Ammunition 6,000 cu. ft.
    General Cargo 3,500 cu. ft.
    Gasoline 1,000 cu. ft.
    Armament
    one single 5"/38 cal dual purpose gun mount
    three twin 40 mm AA gun mounts
    six single 20 mm AA gun mounts
    two depth charge tracks
    Fuel Capacities
    NSFO 2,216 Bbls
    Diesel 93 Bbls
    Propulsion
    two Combustion Engineering "D" Express boilers, 435psi 750°
    two General Electric turbines, (turbo-electric drive)
    Ship's Service Generators
    two 300Kw 450V A.C.
    two 40Kw 120V D.C.
    two propellers, 12,000shp
    Click On Image
    For Full Size Image    		 Size Image Description Source

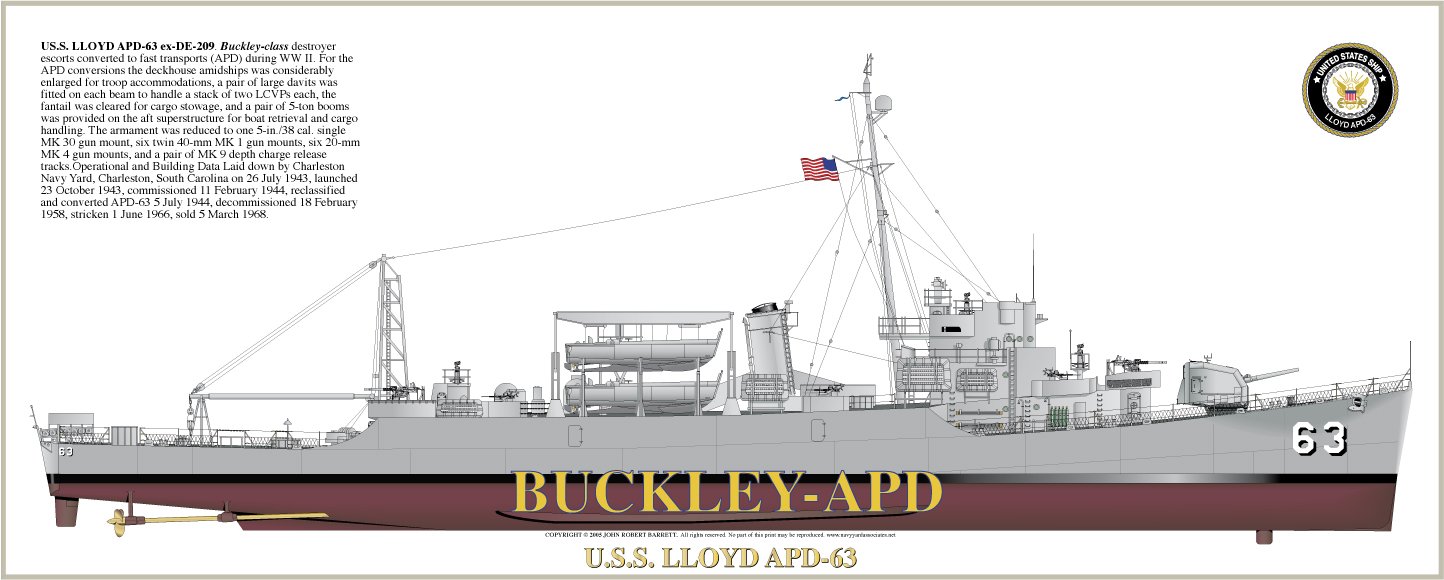

    Lloyd 136k USS Lloyd (APD-63) detailed profile drawing. ©John Robert Barrett

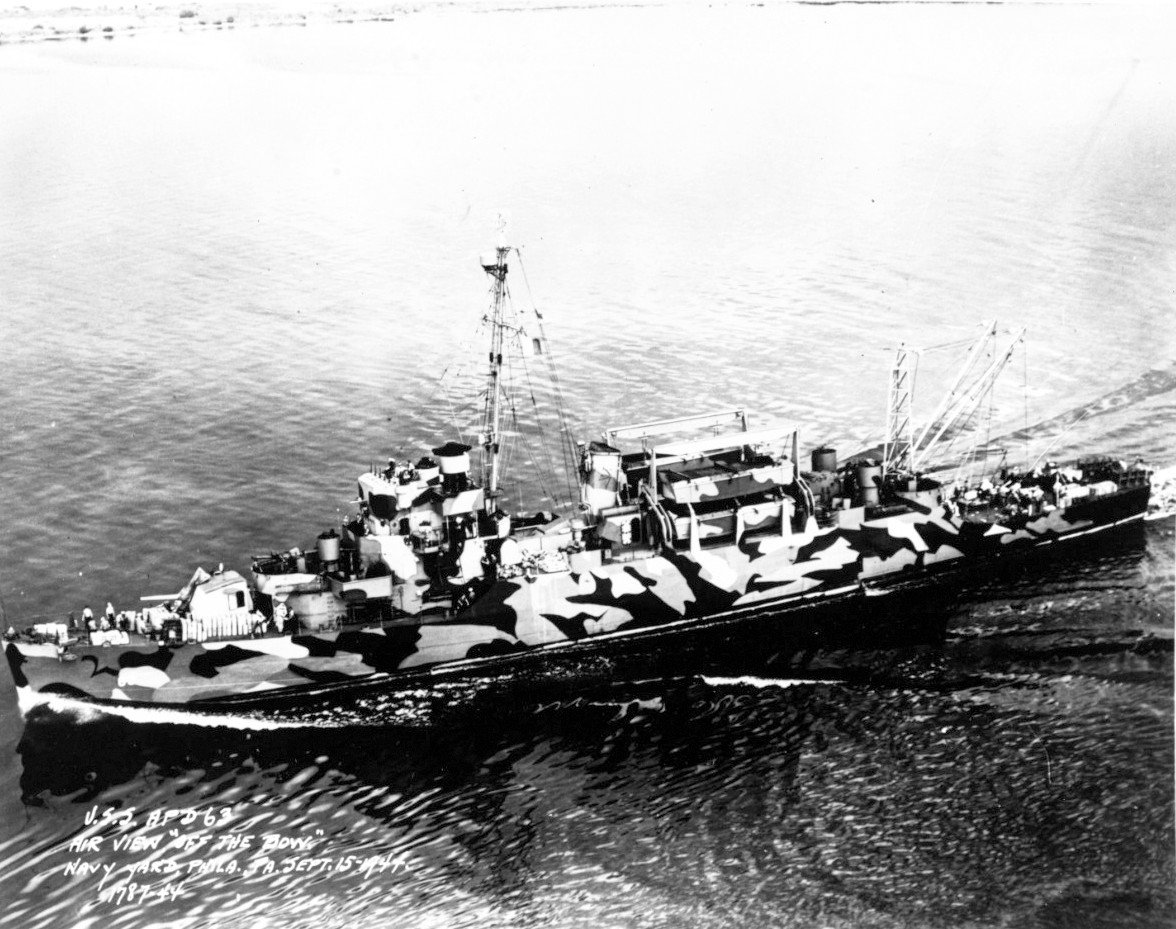

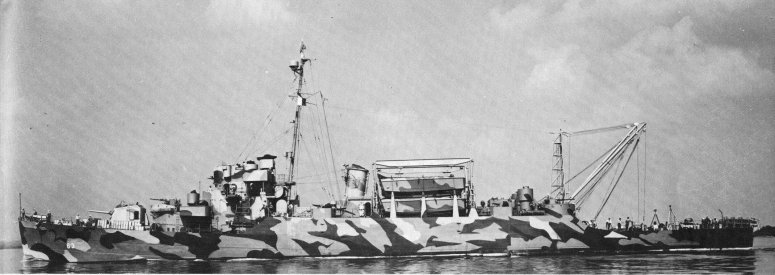

    Lloyd 231k USS Lloyd (APD-63) underway off Philadelphia Navy Yard, 15 September 1944. US Naval History and Heritage Command, Photo # NH 92289, Courtesy of Frank Ankowski, 1981 Mike Green

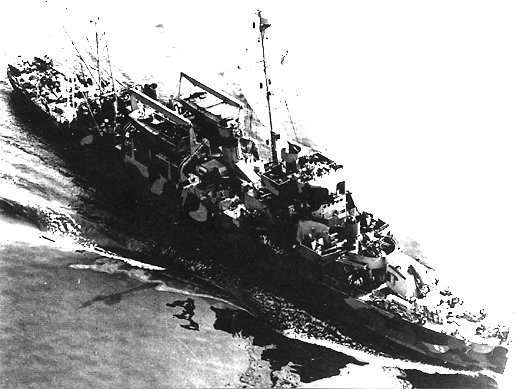

    Lloyd 42k USS Lloyd (APD-63) underway, probably off Philadelphia Navy Yard in September 1944. David Girt

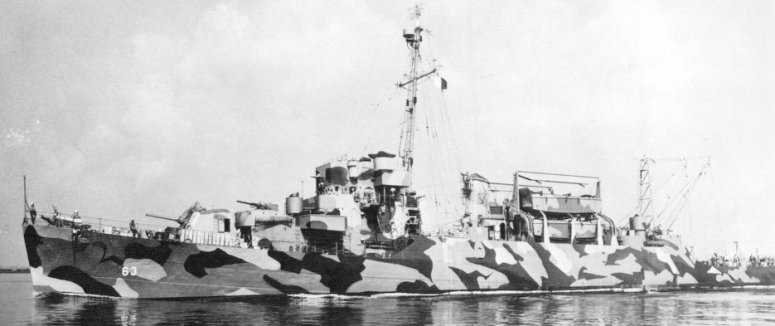

    Lloyd 45k USS Lloyd (APD-63) underway, probably off Philadelphia Navy Yard in September 1944. Nick Tiberio
    Lloyd 53k USS Lloyd (APD-63) underway, probably off Philadelphia Navy Yard in September 1944. Hyperwar US Navy in World War II

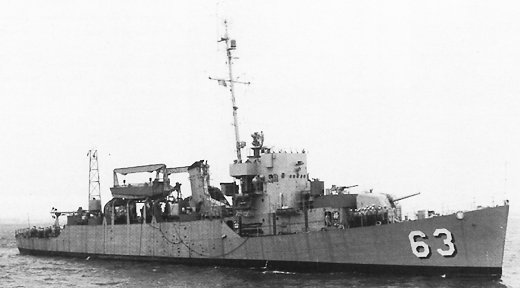

    Lloyd 70k USS Lloyd (APD-63) underway, date and location unknown.
    US Navy photo.    		 Robert Hurst

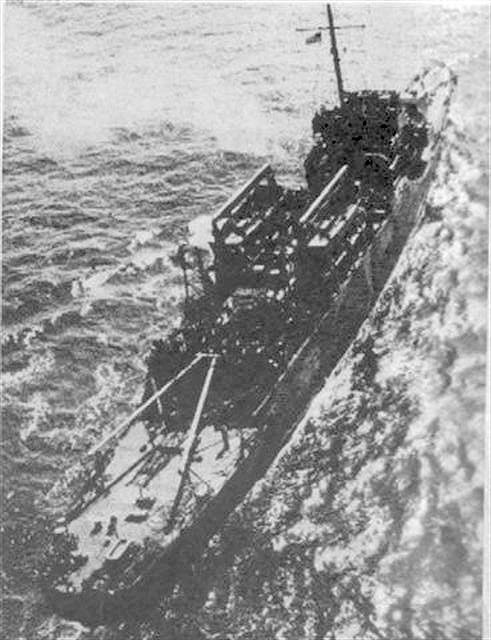

    Lloyd 21k USS Lloyd (APD-63) underway, date and location unknown. Hyperwar US Navy in World War II
    Lloyd
    100406311    		 162k USS Lloyd (APD-63) underway off the Boston Lightship, 5 July 1951.
    U.S. Navy Bureau of Ships photo 19-NN-APD-63 Lloyd-137887. This image is available in the holdings of the National Archives and Records Administration, cataloged under the National Archives Identifier (NAID) 7575248    		 Robert Hurst
    Lloyd
    100406306    		 158k USS Lloyd (APD-63) secured to a mooring buoy in Grand Harbour, Valletta, Malta, circa 1953.
    Photo A. & J. Pavia.     		Robert Hurst
    Lloyd

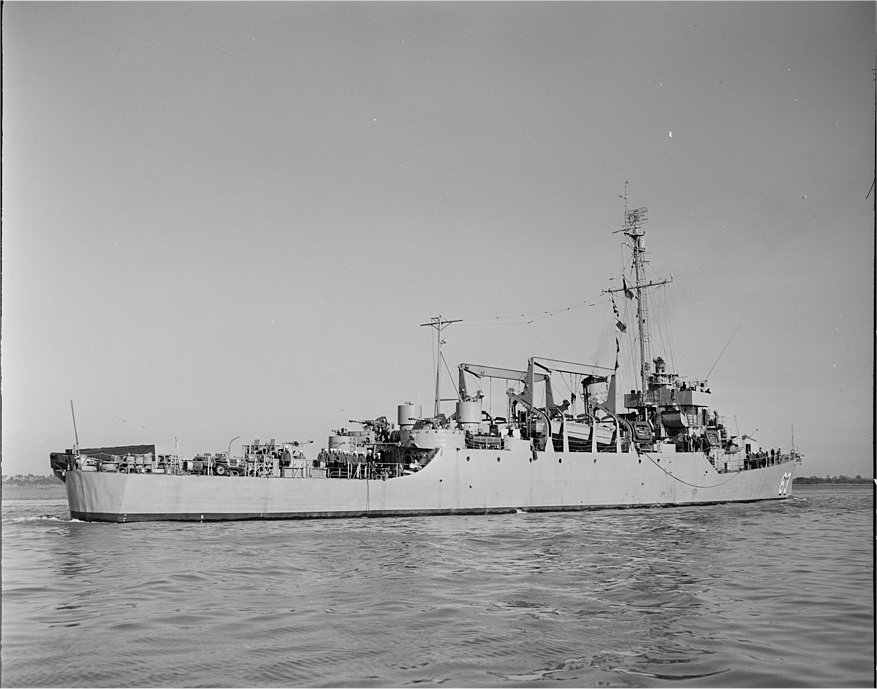

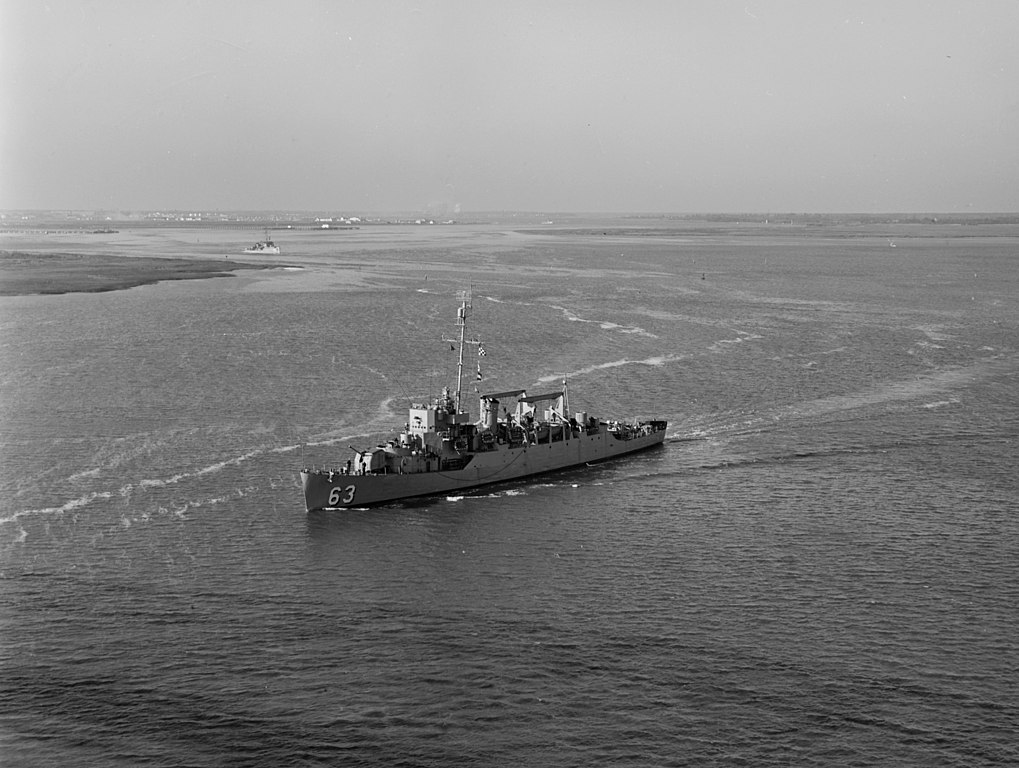

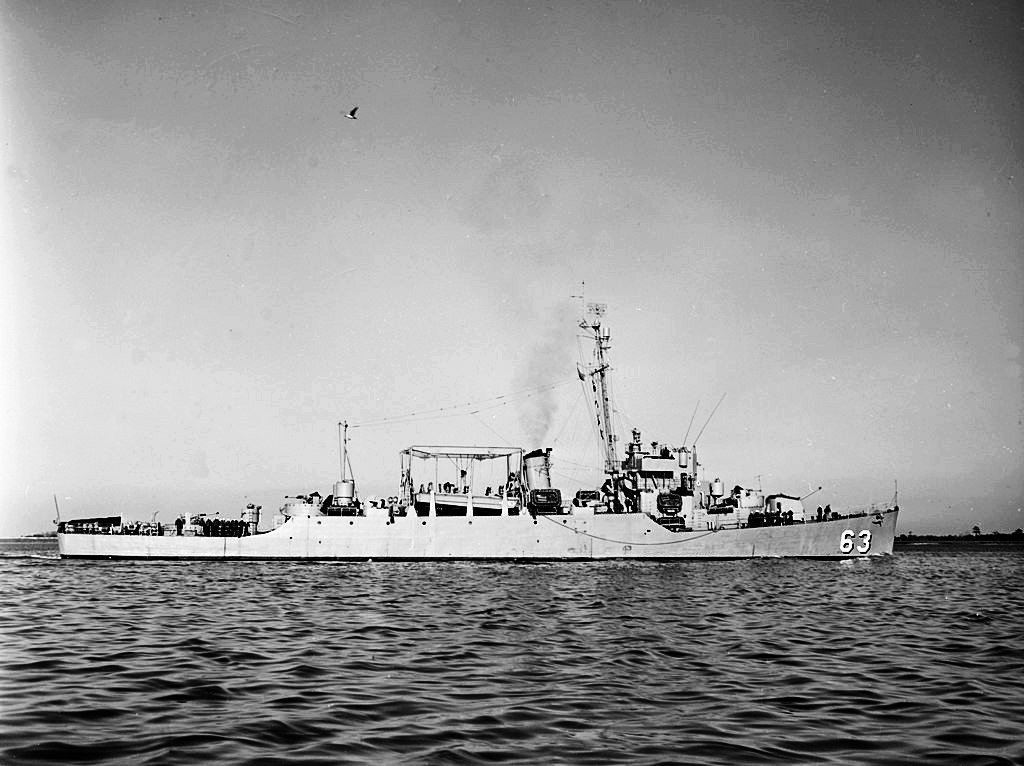

    100406309    		 151k USS Lloyd (APD-63) underway off Charleston, S.C., 18 December 1953. The minesweeper USS Herald (AM-101) is visible in the background of photo # 10040609.
    100406309 - U.S. Navy Bureau of Ships photo 19-NN-APD-63 Lloyd-145155. U.S. National Archives and Records Administration Identifier (NAID) 7575258,
    100406310 - U.S. Navy Bureau of Ships photo 19-NN-APD-63 Lloyd-145156. U.S. National Archives and Records Administration Identifier (NAID) 7575255
    100406312 - U.S. Navy Bureau of Ships photo 19-NN-APD-63 Lloyd-145155. U.S. National Archives and Records Administration Identifier (NAID) 7575254    		 Robert Hurst
    Lloyd
    100406310    		 82k
    Lloyd
    100406312    		 129k
    USS Lloyd (APD-63)
    Dictionary of American Navy Fighting Ships (DANFS)
    Commanding Officers
    01LCDR. Gammelgard, Peter Norris, USNR11 February 1944 - 24 April 1945DE-209 / APD-63
    02LCDR. Taylor, William Robert, USNR24 April 1945 - 12 March 1946APD-63
    03LTjg. Cragg, John William, USNR12 March 1946 - 1 June 1946APD-63
    04LTjg. De Lisle, Norman G., USNR1 June 1946 - 1 July 1946APD-63
     Decommissioned1 July 1946 - 3 January 1951
    05LCDR. Sullivan, Arthur Dennis, USN (USNA 1942)3 January 1951 - ?APD-63
    06LCDR. Vaughen, William Lee.1951APD-63
    07LCDR. Gallagher, Bernard Franklin1956APD-63
    Courtesy Wolfgang Hechler and Ron Reeves
